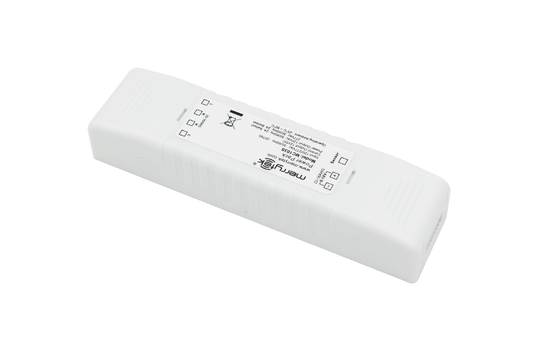

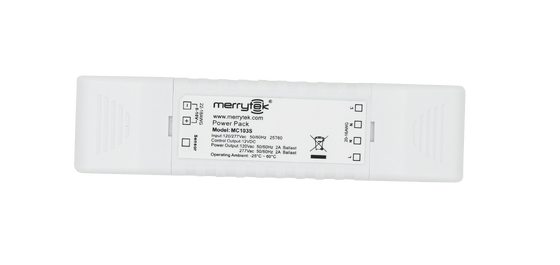

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
| Tempat asal | Cina |
|---|---|
| Nama merek | Merrytek |
| Sertifikasi | CE |
| Nomor model | MC103S 1 |
| Kuantitas min Order | 100 buah |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Tas gelembung + Papan + Karton (K = A) |
| Waktu pengiriman | 1, sampel dan pesanan kecil: Dalam 5 hari kerja setelah menerima pembayaran Anda. 2, pesanan curah: |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 10,000pcs per bulan |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nilai Tegangan | 220-240VAC 50/60Hz | Kekuatan Standby | ≤1w |
|---|---|---|---|
| Keluaran bantu | 12VDC 100mA (Maks) | Modus kerja | PWM/0-10V/HIDUP/MATI |
| Peringkat IP | IP20 | Seumur hidup | 5 tahun garansi @Ta 230V penuh beban |
| Menyoroti | 0-10V dimmable LED driver,PWM dimmable LED driver 100mA,DC sensor compatible LED driver |
||
Deskripsi Produk
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Product Overview
This 0-10V/PWM dimmable LED driver provides 12VDC auxiliary power for DC sensors with maximum 100mA current. Designed to work with Merrytek DC sensors, it enables 0/1-10V dimming and ON-OFF functionality.
Key Features
- 12VDC auxiliary power supply for DC sensor, maximum 100mA current
- 220-240VAC input
- Compatible with Merrytek DC sensors for 0/1-10V dimming and ON-OFF functionality
Technical Specifications
| Input | |
|---|---|
| Rated Voltage | 220-240VAC 50/60Hz |
| Stand-by Power | ≤1W |
| Surge Test | 1KV(L/N,EN61000-4-5) |
| Output | |
| AUG Input | 5PWM / 0-10VDC |
| AUG Output | 12VDC 100mA(Max) |
| AC Load Capacity | 400W@230Vac(Inductive Load), 800W @230Vac(Resistive Load) |
| AC Max. Surge Capacity | 30A(@ 50% Ipeak, twidth 500us @230Vac full load & start at cold load.) 60A(@ 50% Ipeak, twidth 200us @230Vac full load & start at cold load.) |
| Interface | |
| Interface | 0/1-10V dimming port |
| Environment | |
| Operating Temperature | -25~60°C |
| Storage Temperature | -40℃~80℃, Humidity: ≤85%(Non-condensing) |
| Certifications & Standards | |
| Certificate | CE |
| Environmental Requirement | Compliant to RoHS 2.0, Reach |
| Safety standards | EN61058-1-2, EN61058-1 |
| EMC standards | EN61058-1,EN61000-3-2,EN61000-3-3,EN62479, EN301489-1, EN55015, EN300440 |
| IP Rating | IP20 |
| Protection Class | Class II |
| Other Specifications | |
| Wiring | Press-in Type Terminals, wire diameter:0.75-1.5mm² & 3 pin 2.0mm fast connector |
| Installation | Built-in |
| Package | Bubble bag+Clapboard + Carton(K=A) |
| Net Weight | 65±5g |
| Lifetime | 5 years warranty @Ta 230V full load |
Dimensions
Wiring Example with Merrytek DC Sensor
Note: This product is designed to connect to one load only.
Installation Notice
The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.
