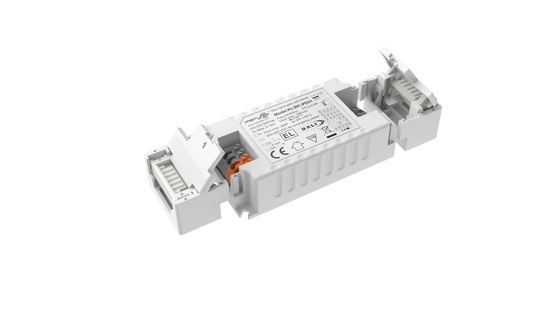

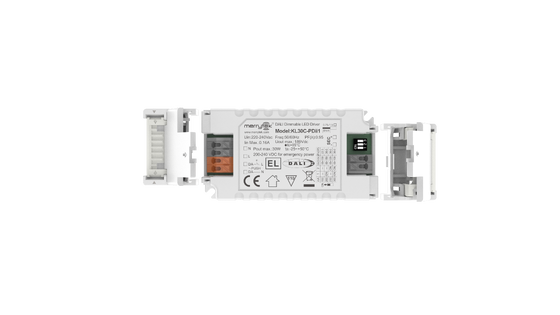

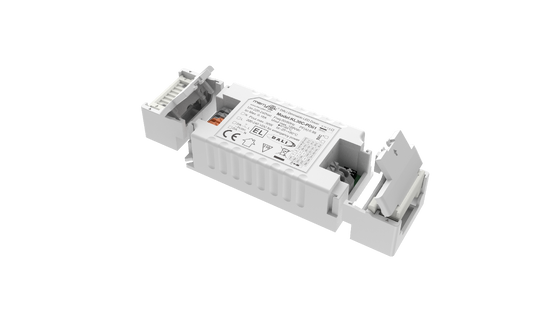

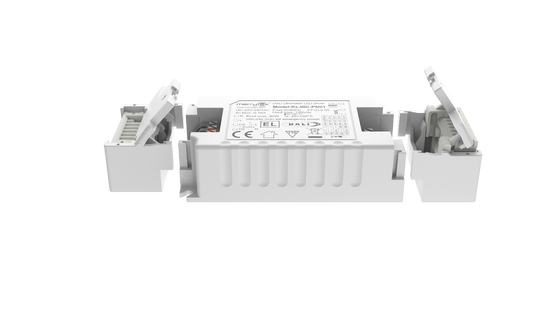

30W DALI DT6 And PushDIM 150ma to 300mA Dimmable LED Driver with output voltage 60-150Vdc

  • 30W DALI DT6 And PushDIM 150ma to 300mA Dimmable LED Driver with output voltage 60-150Vdc
  • 30W DALI DT6 And PushDIM 150ma to 300mA Dimmable LED Driver with output voltage 60-150Vdc
  • 30W DALI DT6 And PushDIM 150ma to 300mA Dimmable LED Driver with output voltage 60-150Vdc
  • 30W DALI DT6 And PushDIM 150ma to 300mA Dimmable LED Driver with output voltage 60-150Vdc
Tempat asal Cina
Nama merek Merrytek
Sertifikasi CE
Nomor model KL30C-PDii1
Kuantitas min Order 100
Harga Dapat dinegosiasikan
Kemasan rincian Kotak putih + Karton, 100 pcs/CTN
Waktu pengiriman 1, sampel dan pesanan kecil: Dalam 5 hari kerja setelah menerima pembayaran Anda. 2, pesanan curah:
Syarat-syarat pembayaran T/t atau paypal
Menyediakan kemampuan 10,000pcs per bulan
Detail produk
Nilai tegangan masukan 220-240Vac 50Hz /60Hz Kisaran Tegangan Masukan DC 200-240Vdc
Modus Pengoperasian Arus konstan Metode Pengendalian DALI DT6 dan dorongDIM
Faktor Daya ≥0,95 Efisiensi 91%
Saat ini 150/200/250/300mA Dimensi P116mm*L40,5mm*T22mm
Peringkat IP IP20 Jaminan 5 tahun
Tinggalkan pesan
Deskripsi Produk
30W DALI DT6 And PushDIM 150ma to 300mA Dimmable LED Driver with output voltage 60-150Vdc 1. Description -Flicker-free for the whole dimming range -Stand-by power below 0.5W -Primary dimming with push button -Built-in DALI interface DT6 -Centrally-supplied DC emergency operation DT19 -Protection: short circuit / over temperature/ over voltage -Current Derating over high ambient temperature -pushDIM with the memory function -5 year warranty 2. Parameters Micro Series KL30C
