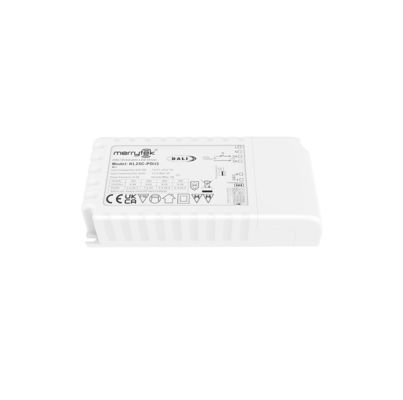

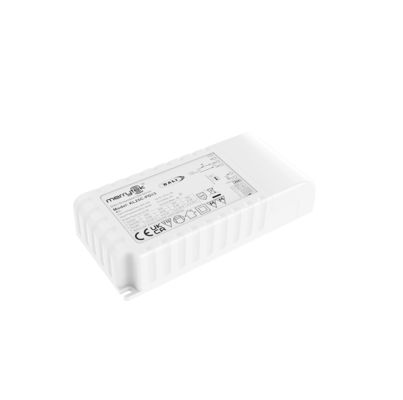

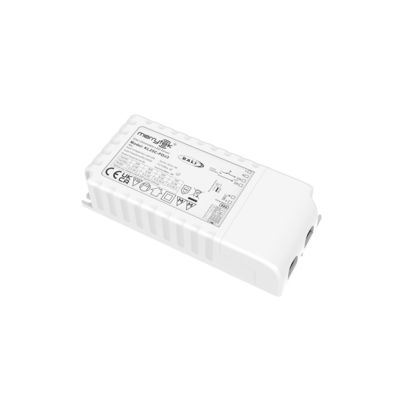

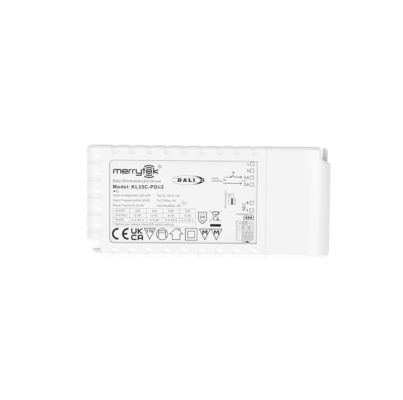

25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty

  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
Tempat asal CINA
Nama merek Merrytek
Sertifikasi CE / RoHS
Nomor model KL25C-PDii3
Kuantitas min Order 100 pcs
Harga Dapat dinegosiasikan
Kemasan rincian Dikemas dalam tas gelembung terlebih dahulu, lalu diperkuat dengan karton untuk kemasan luar
Waktu pengiriman 1, sampel dan pesanan kecil: Dalam 5 hari kerja setelah menerima pembayaran Anda. 2, pesanan curah:
Syarat-syarat pembayaran T/T atau Western Union
Menyediakan kemampuan 10,000pcs per bulan

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Persetujuan CE, REACH, ROHS Tegangan Dinilai 220-240V AC 50Hz /60Hz
Nama Produk Driver led kompak PUSH dan DALI2 Daya Keluaran Beban Penuh 25W maks
Tegangan output beban 9-58V Mode peredupan DALI, DORONG, 1-10V
Suhu kerja -25 ℃ -50 ℃ Arus keluaran 350/500/550/700mA
Menyoroti

25W DALI2 LED driver

,

compact PUSH dimmable driver

,

700mA LED driver with warranty
Tinggalkan pesan
Deskripsi Produk
25W CC 350mA to 700mA PUSH and DALI2 Compact LED Driver with 5 Years Warranty
Product Description

A high-performance LED driver featuring built-in DALI2 protocol, primary PUSH dimming function, and comprehensive protection features with a 5-year warranty.

Key Features
  1. Built-in DALI2 protocol with flicker-free performance across full dimming range
  2. Primary PUSH dimming with state memory function
  3. Protection features: short circuit, over temperature, over voltage
  4. Low standby power consumption ≤ 0.5W
  5. 5-year warranty for reliable performance
Technical Specifications
Input Specifications
Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Current 0.15A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W (@230Vac)
Efficiency 86%Max (@230Vac,100% load)
Wiring Method Push terminal, wire cross section:0.75-1.0mm²
Output Specifications
Operating mode Constant Current
Load type LED
Ripple requirement Flicker value: less than 2% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 68VDC Max.
Load output voltage range 9-58VDC
Full load output power 25W Max.
Load output current 350MA(9-58V)500MA(9-50V)550MA(9-45V)700MA(9-36V)
Constant current/voltage Precision Constant Current Precision ±5%
Dimensions
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 0
Wiring Diagrams
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 1
PUSH Dimming Wiring
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 2
DALI Wiring
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 3
0-10V Dimming Wiring
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 4
Operation Instructions

ON/OFF Operation: Short-press the PUSH switch (0.1s-1s) to turn on/off.

Dimming: Press and hold (1s-8s) to dim/brighten (2-100% range).

Memory Function: PUSH dimming maintains last brightness setting.

DALI Mode: Connect to DALI system for 0-100% dimming control.

Important Notes
  1. Always connect load before powering on to prevent damage
  2. Output maintains residual voltage for ~3 minutes after power off

Note: All parameters are tested at 230VAC input and 25°C environment unless specified.
