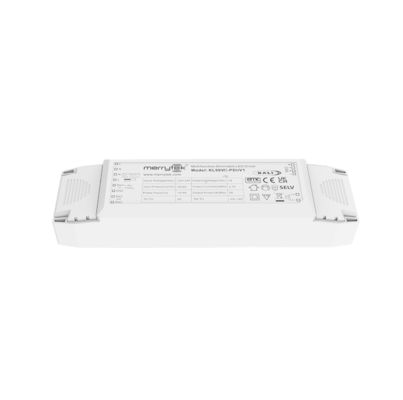

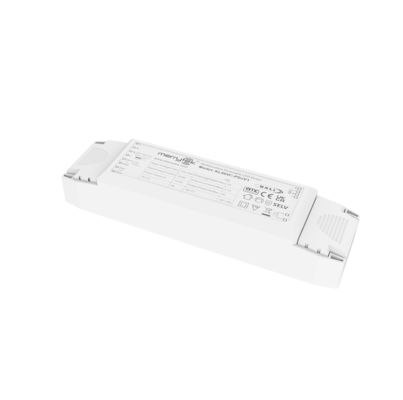

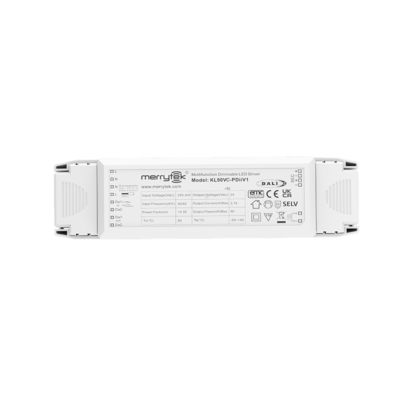

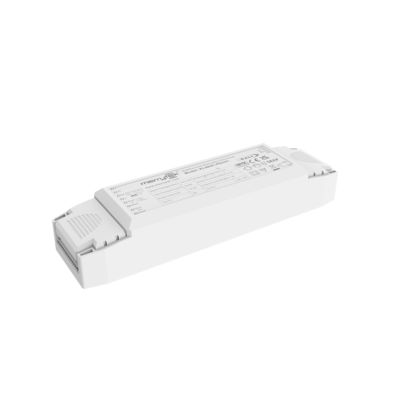

90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty

  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
Tempat asal Tiongkok
Nama merek Merrytek
Sertifikasi CE
Nomor model KL90VC-PDiiV1
Kuantitas min Order 100
Harga Dapat dinegosiasikan
Kemasan rincian Kotak putih + Karton, 50pcs/CTN
Waktu pengiriman 1, sampel dan pesanan kecil: Dalam 5 hari kerja setelah menerima pembayaran Anda. 2, pesanan curah:
Syarat-syarat pembayaran T/t atau paypal
Menyediakan kemampuan 10,000pcs per bulan

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nilai Tegangan Masukan 220-240Vac 50Hz /60Hz Kisaran Tegangan Masukan DC 200-240Vdc
Mode operasi Tegangan Konstan Metode pengendalian tegangan konstan driver strip led 24V DALI DT8 yang dapat diredupkan
Faktor daya ≥0,99 Efisiensi 92%
Tegangan Konstan 24VDC Dimensi 202x58x30mm
Peringkat Ip IP20 Jaminan 5 Tahun
Menyoroti

24V DALI DT8 LED driver

,

90W dimmable LED strip driver

,

DALI2.0 driver with 5-year warranty
Tinggalkan pesan
Deskripsi Produk
90W Constant Voltage 24V DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
Product Description

High-performance 90W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.

  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series Name KL90VC-PDiiV1
Input Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.45A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Loop-in&Loop-out quantity 16PCS(@230Vac)
Automatic circuit breaker type (Calculate current in the wire) B10 | 7 | C10 | 12 | B10 | 7 | C10 | 12 | B10 | 6 | C10 | 10
B13 | 9 | C13 | 16 | B13 | 9 | C13 | 16 | B13 | 7 | C13 | 13
B16 | 11 | C16 | 20 | B16 | 11 | C16 | 20 | B16 | 9 | C16 | 16
B20 | 14 | C20 | 25 | B20 | 14 | C20 | 25 | B20 | 11 | C20 | 20
B25 | 17 | C25 | 35 | B25 | 17 | C25 | 35 | B25 | 14 | C25 | 25
/ | / | C32 | 35 | / | / | C32 | 35 | / | / | C32 | 30
Output Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 24V
Output current 3.75A
Max. output voltage (no-load) 30V
Full load output power 90W Max.
Dimensions
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 0
Wiring Diagrams
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 1
DALI Dimming
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 2
Push Dimming
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 3
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers the last dimming setting
  • DALI dimming: Connect to the DALI system for 0-100% dimming

Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
