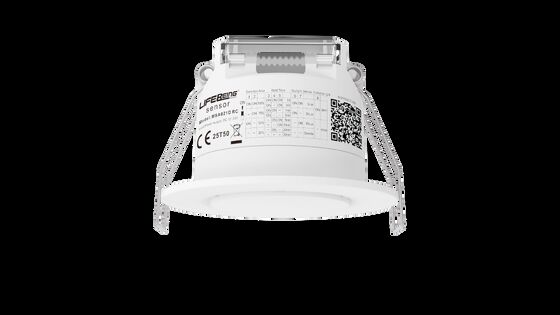

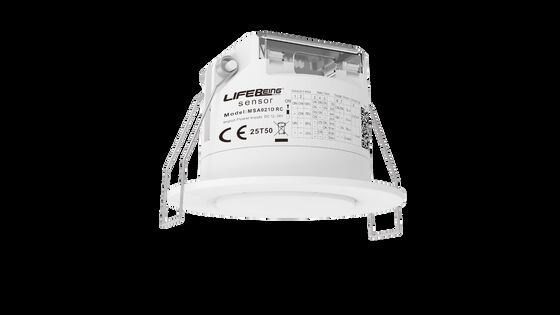

MSA021D RC 24GHz Presence and motion sensor with dry contact output

Tempat asal	Cina
Nama merek	Merrytek
Sertifikasi	CE
Nomor model	MSA021D RC
Kuantitas min Order	100 buah
Harga	Dapat dinegosiasikan
Kemasan rincian	Kotak warna + kartu datar + kotak luar (K=A)
Waktu pengiriman	1, sampel dan pesanan kecil: Dalam 5 hari kerja setelah menerima pembayaran Anda. 2, pesanan curah:
Syarat-syarat pembayaran	T/T atau Western Union atau PayPal
Menyediakan kemampuan	10,000pcs per bulan

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

Detail produk

Mendeteksi Teknologi	gerakan besar / gerakan kecil / Deteksi kehadiran	Modus kerja	Kontak kering
Nilai Tegangan	12-24V DC	Kekuatan Siaga	0.5W
Kapasitas Beban	Resistif maks 36V 50mA	Frekuensi Kerja	24GHz -24.25GHz, pita ISM
Max. Maks. Mounting Height Ketinggian Pemasangan	2.5-4m	Jaminan	5 Tahun
Menyoroti	24GHz RC presence sensor , motion sensor dry contact output , MSA021D presence detector sensor

Tinggalkan pesan

Deskripsi Produk

MSA021D RC 24GHz Presence and Motion Sensor with Dry Contact Output

Product Overview

The MSA021D RC is a sophisticated 24GHz presence and motion sensor featuring dry contact output, designed for reliable detection in various industrial and commercial applications.

Key Features

Exclusive Merrytek Lifebeing Presence Detection
FMCW modulation technology for detecting micro movements from breathing
German RF technology with 5-year guarantee assurance
Accurate Presence/Absence Output
Daylight Sensor Available
NO/NC dry contact output available
24GHz ISM Band Millimeter Wave Radar technology
Major/Minor/Micro Motion detection diameter: 6-8m Max

Technical Specifications

Input/Output
Input voltage	12-24V DC
Rated voltage	12/24V DC
Working Current	@12Vdc: 50mA max @24Vdc: 30mA max
Working Power	≤1W @24V DC
Output signal	NO/NC dry contact (Factory setting is NO dry contact)
Load type	Resistive (load voltage: Vdc≤36V, load current: 100mA max)
Sensor Parameters
Radar frequency	24GHz - 24.25GHz, ISM band
Transmitting Power	5mW Max.
Detection Area	0-5m
Hold Time	10s-30min (For better presence detection, hold time shall be set >30S)
Daylight Sensor threshold	5Lux-150Lux/Disable
QS1+100% detection range radius	Major/minor/micro movement (3m height installation): 4.5±0.5m (based on 41㎡ open area test and might change due to different space)
Remote control	Available
Mounting height	2.5-4.0m (typical value: 3m)
Detecting Angle	120°
Application Environment
Drill hole	Φ65-70mm
Working Temperature	0℃...+50℃
Storage Temperature	-25℃~+80℃ Humidity: ≤85% (non-condensation)
Certificate & Standards
Certificate	RED
Environmental Requirement	Compliant with RoHS
IP Rating	IP20
Guarantee	5 year (only for product quality problem)
